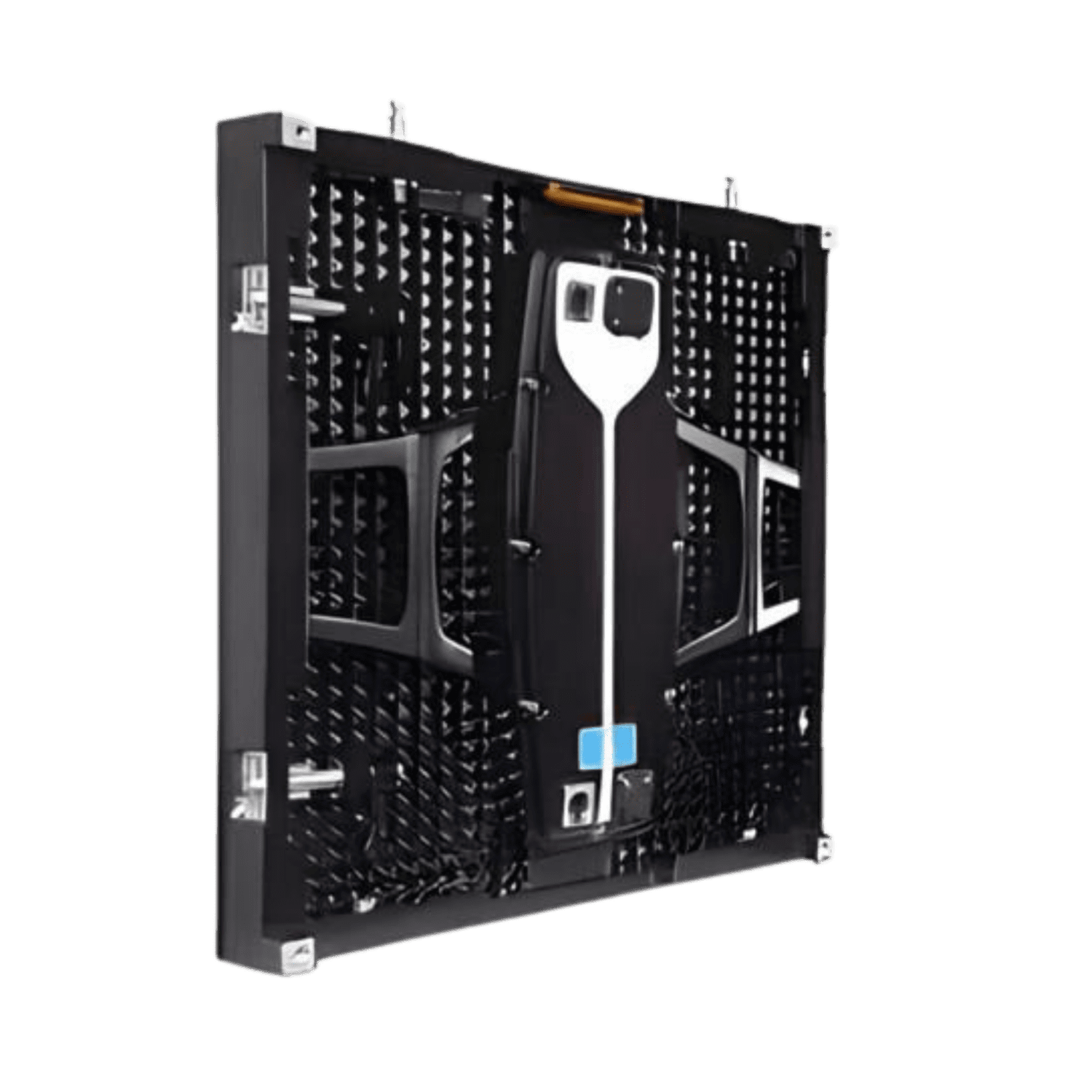

The Absen X5 LED tiles are a product line of indoor LED displays designed for a wide range of applications, from trade shows and live events to corporate presentations and educational institutions. These tiles feature a 5.2mm pixel pitch, which is considered medium-density, offering a balance between resolution and cost-effectiveness. Here’s a detailed overview based on the provided sources:
Key Features:
- Pixel Pitch: The Absen X5 tiles boast a 5.2mm pixel pitch, ensuring that even the smallest details are clearly visible. This makes them suitable for displaying high-resolution images and videos 1.
- Brightness: With a brightness level of 5000 nits, these LED tiles can produce vibrant colors and sharp images, even in brightly lit environments. This high brightness level is beneficial for outdoor events or installations where ambient light levels are high 1.
- Contrast Ratio: The contrast ratio of 3000:1 contributes to the depth and realism of the displayed content, making it easier to distinguish between dark and light areas 3.
- Dimensions and Weight: Each tile measures 500mm x 562.5mm x 94mm (approximately 19.75″ x 22.15″ x 4″) and weighs around 10 kg (24.7 lbs). These dimensions and weight make the tiles manageable for installation and transportation 3.
- Material and Configuration: The panels are made of aluminum alloy, ensuring durability and longevity. They utilize SMD 3in1 pixel configuration, which combines red, green, and blue LEDs into one package, reducing the overall number of pixels required for the same resolution 3.
- Installation and Rental Friendliness: The tiles are designed for easy installation and dismantling, featuring smart adjustable locks. They are cross-rental friendly with embedded auto-match calibration, making them convenient for rental applications 1.
- Viewing Angle and Refresh Rate: Offering a viewing angle of 140° horizontally and 120° vertically, these tiles ensure that the content is viewable from a wide range of angles. The refresh rate of 3000 Hz ensures smooth motion in fast-moving content 3.
- Environmental Rating: With an IP65 front and IP54 rear rating, the Absen X5 tiles are suitable for indoor use in environments exposed to dust and water splashes 3.
Summary:
The Absen X5 LED tiles are a versatile option for indoor LED display applications, offering a good balance between resolution, brightness, and cost. Their medium pixel pitch, combined with high brightness and contrast ratios, makes them suitable for a wide range of visual display needs. The tiles’ durable construction, ease of installation, and rental-friendly features further enhance their utility in various industries and events.
