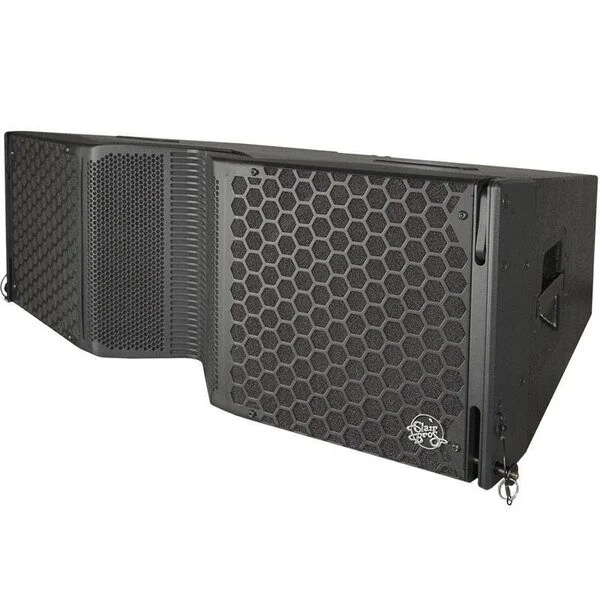

The Clair Brothers C12-M-90 is a line array module that is part of the C12 set, which includes several components designed for audio reinforcement. Here are the key specifications based on the provided sources:
Audio Specifications
- Type: Three-Way Active (Bi-Amp with Passive Mid/Hi)
- Frequency Response: Single Cabinet – 60Hz–20kHz (+/- 3dB); (-10dB) 54Hz–22kHz
- Recommended Power Amplifier: CB-PLM12K44 or CB-D80:4L
- Maximum Array: Up to 24 C8-i modules
- Compatible Subwoofers: CS118-i, iS118-i, CS218
- Prediction Software: Clair GLL/AFMG Ease Focus™ Array, Lake Controller® with Clair DSP, WiFi System Control
- Sensitivity (1 Watt @ 1 Meter): LF – 98.2 dB SPL, MF/HF – 118.8 dB SPL
- Maximum Output: Cont – 135 dB SPL, Peak – 145 dB SPL (Bandpass dependent)
- Drivers: LF – (2) 8 in (203.2mm), MF – (1) 3.5 in (89mm), HF – (1) Exit 1.4 in (35.6mm); VC diameter 1.75 in (44.5mm)
- Nominal Impedance: LF/MF/HF – 16 Ohms
- Crossover Network: Integrated Passive
- Power Handling: Program (AES) – LF: 800W; MF: 150W; HF: 160W, Peak – LF: 1600W; MF: 500W; HF: 320W
- Dispersion: Standard – 120° H x 10° V, Optional Horizontal – Custom Horizontal 50° – 140° H (10° increments)
- Input Connection: (2) EP-4 Connectors (1 Male, 1 Female)
